ATS103 - For Diesel applications 50-250 Litres (Available with ATEX Certification)

ATS103 Pre-Engaged Manual

ATS103 Service Kit

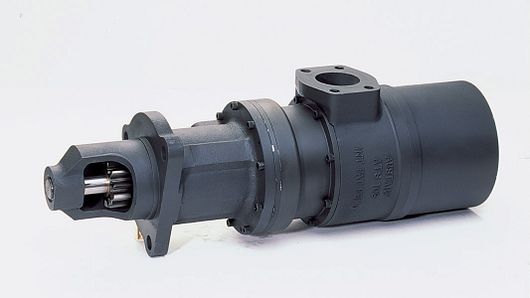

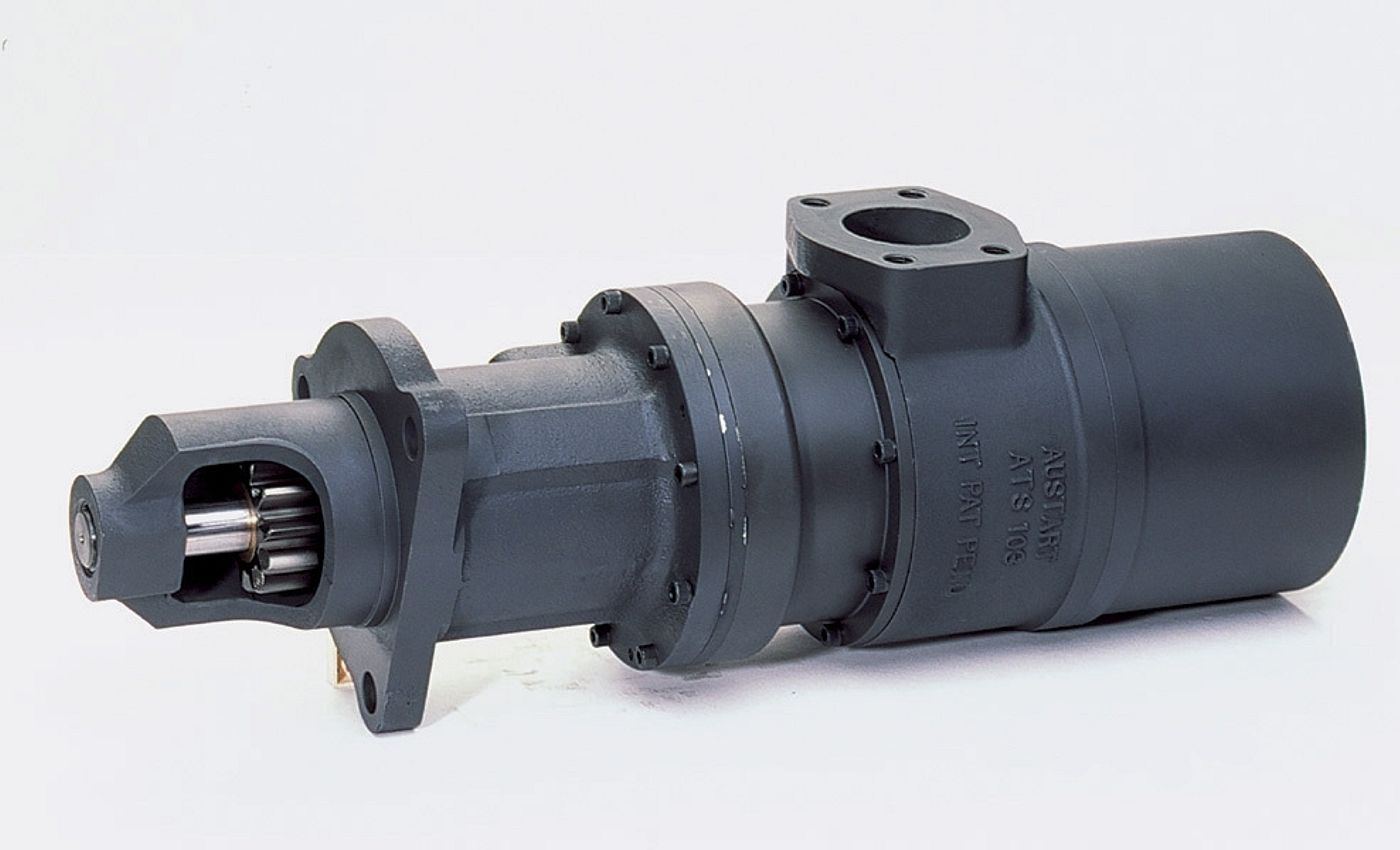

The AT103 series successfully starts large diesel and gas compression engines within the marine and gas industries.


Key Features at 100 psi starting pressure


46.3 lb (21 kg)


60 hp (44.1 kW)


265 ft (359.3 Nm)


18.3 scfs (520 I/s)


4600 RPM

Noise Level

108 dBa

By ingenious design, benifits of Austart turbine starters include:

  • No lubrication required

  • Higher cranking torque

  • Extended cranking periods

  • Faster, more reliable starting

  • 3 stage self governed turbine wheel

  • Corrosion resistant coatings

  • Fewer moving parts

  • Longer service intervals

  • Immunity to dusty environments

  • Immunity to extremely high or low temperatures

  • No need for special tools when servicing

  • No batteries are required

Air starters come in many configurations for a variety of applications and fitment objectives.

  • Nosecone or overhung pinions

  • Berrylium Copper Bronze (BCB) non sparking pinions available

  • Clockwise or Counter clockwise rotation

  • Pre-engaged or inertia engagement options

  • Z shaped models available for limited space applications

  • Mounting flange and pinion options available to suit most engines

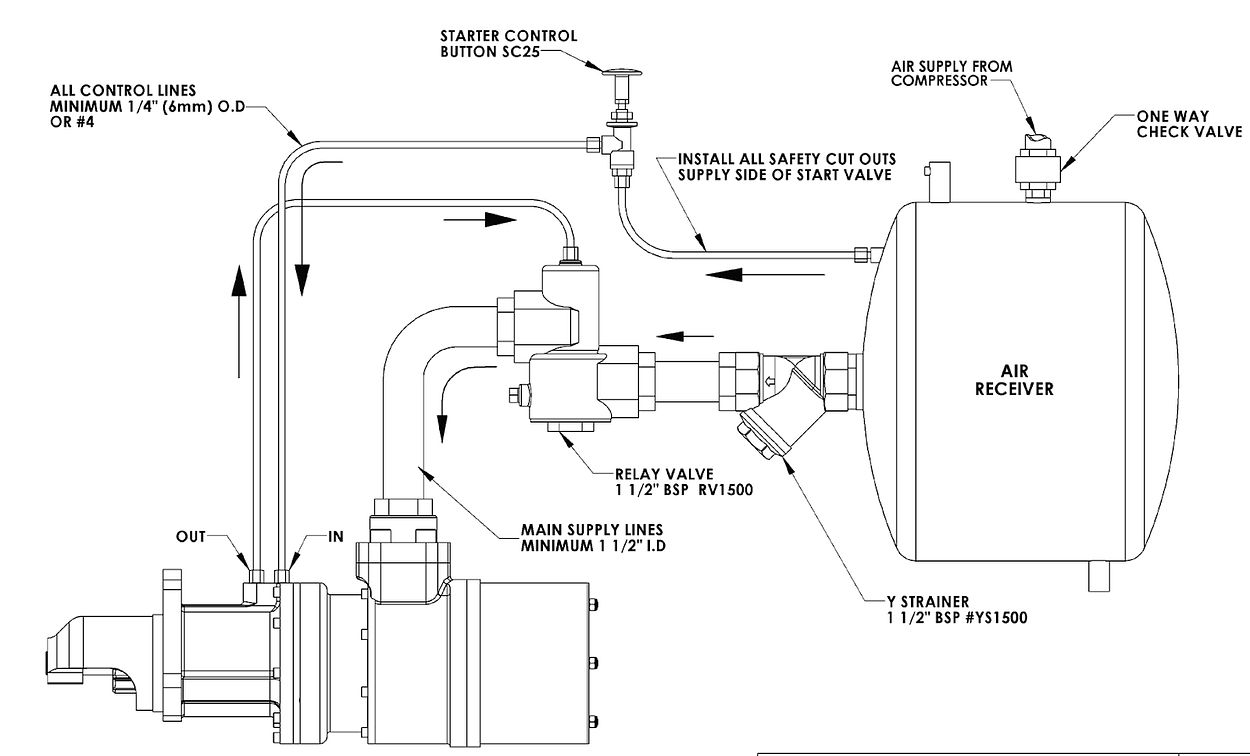

Ats 103 schematic

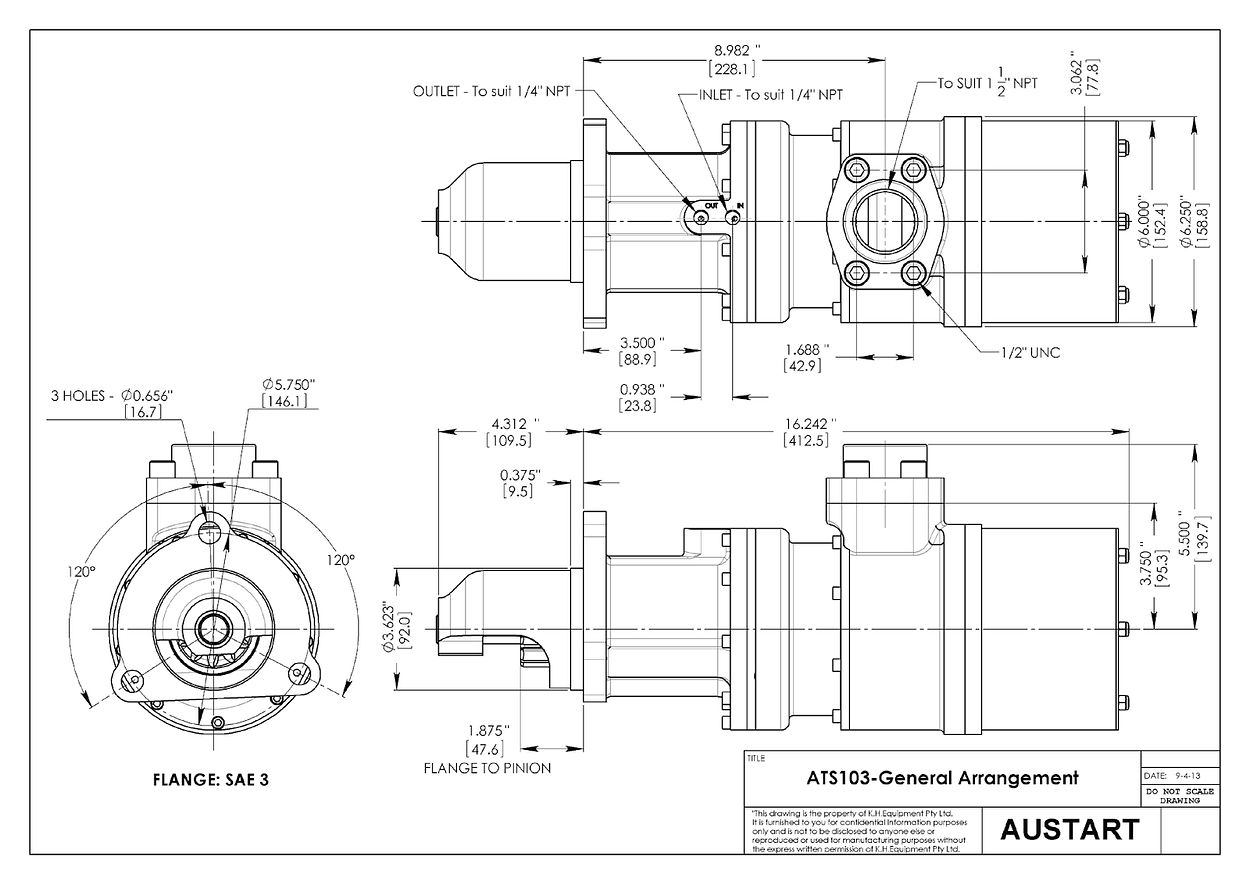

Ats 103 general arrangement
