| Property | Value | Unit |
|---|---|---|
| Models covered | ATS53, ATS54 | |
| Engine displacement range | up to 3 | litres |
| Weight | 8 | kg |
| Power at 100 psi | 6.6 | kW |
| Torque at 100 psi | 42 | Nm |
| Air consumption at 100 psi | 125 | l/s |
| Speed | 5500 | RPM |
| Noise level | 100 | dBA |
| Hazardous area certification | ATEX available | |
| Lubrication required | No |

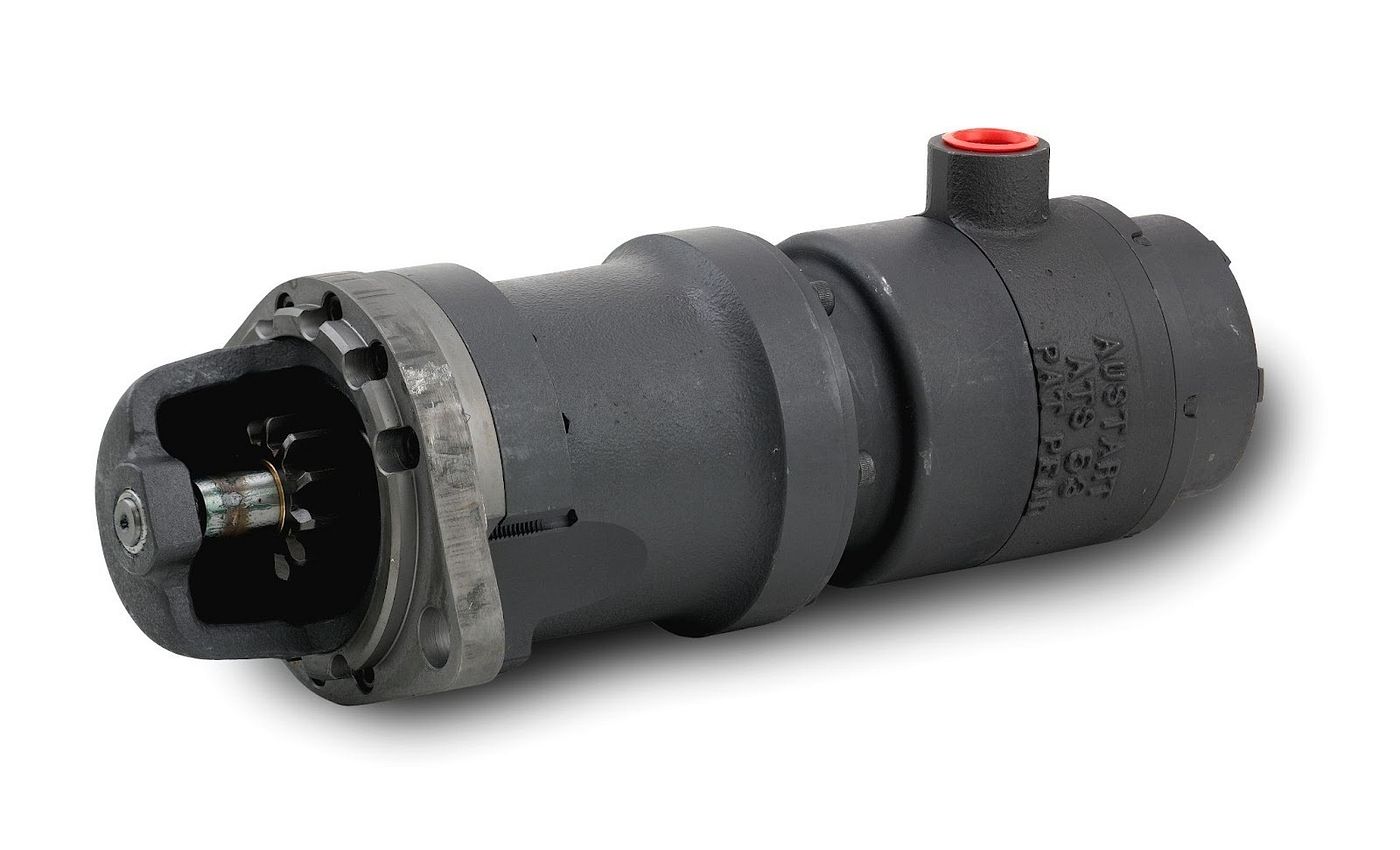

ATS53 & 54 - For Diesel applications up to 3 Litres (Available with ATEX Certification)
ATS53 Service Kit
ATS53 Maintenance Manual
ATS54 Maintenance Manual
The ATS53 & 54 series has been designed for those smaller engine applications such as fork trucks or portable pump units. Many configurations are available for applications where lack of room is an issue.
Key Features at 100 psi
Weight
17.6 lb (8kg)
Power
6.6 kW
Torque
42 Nm
Comsumption
125 l/s
Speed
5500 RPM
Noise Level
100 dBa
By ingenious design, benefits of Austart turbine starters include:
No lubrication required
Higher cranking torque
Extended cranking periods
Faster and more reliable starting
3 staged self governed turbine wheel
Corrosion resistant coatings
Fewer moving parts
Longer service intervals
Immunity to dusty environments
Immunity to extremely high or low temperatures
No need for special tools when servicing
No batteries are required
Air starters come in many configurations for a variety of applications and fitment objectives.
Nosecone or overhung pinions
Beryllium Copper Bronze (BCB) non sparking
Pre-engaged or inertia engagement options
U shaped models available for limited space applications
Mounting flange and pinion options available to suite most engines
