| Property | Value | Unit |
|---|---|---|
| Models covered | ATS63, ATS64 | |
| Engine displacement range | 3-8 | litres |
| Weight | 10.9 | kg |
| Power at 100 psi | 7.4 | kW |
| Torque at 100 psi | 67.8 | Nm |
| Air consumption at 100 psi | 132 | l/s |
| Speed | 4500 | RPM |
| Noise level | 100 | dBA |
| Hazardous area certification | ATEX | |
| Lubrication required | No |

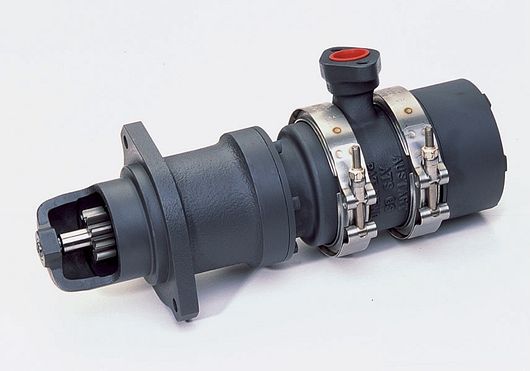

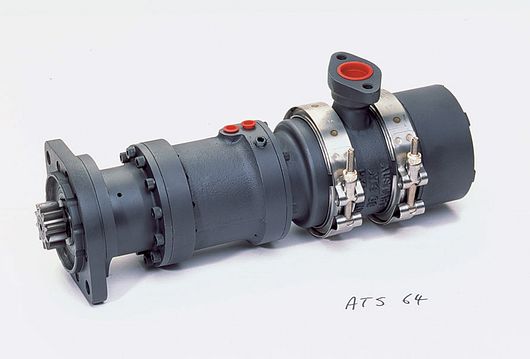

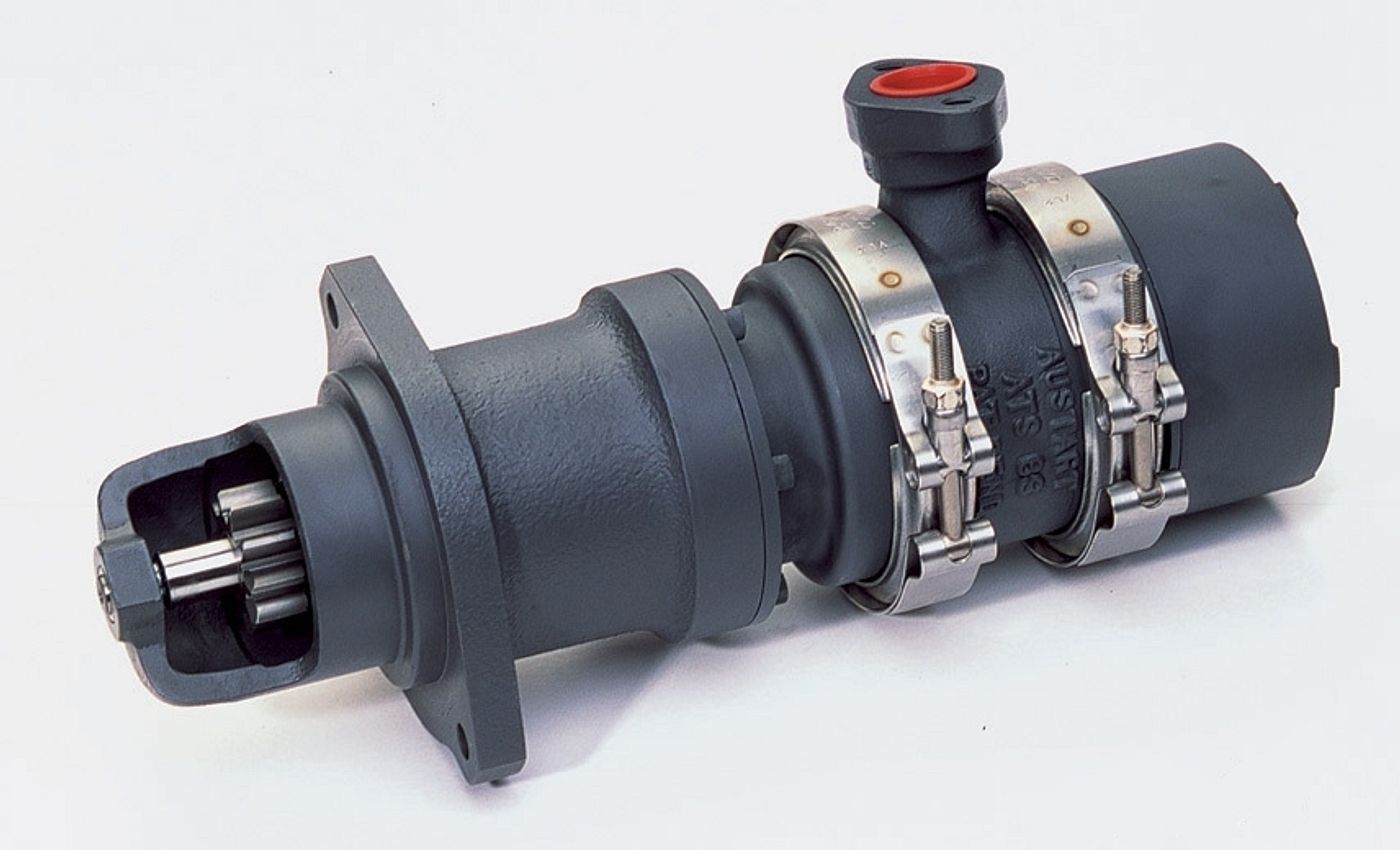

ATS63 & 64 - For Diesel applications 3-8 Litres (Available with ATEX Certification)
The ATS63 & 64 series is the first of our range with band clamps offering 360 Degree rotation of the inlet port, ensuring ease of installation.
Key Features at 100 psi starting pressure
Weight
24 lb (10.9) kg
Power
10 hp (7.4 kW)
Torque
50 ft lb (67.8 Nm)
Comsumption
4.7 scfs (132 I/s)
Speed
4500 RPM
Noise Level
100dBa
By ingenious design, benifits of Austart turbine starters include:
No lubrication required
Higher cranking torque
Extended cranking periods
Faster, more reliable starting
3 stage self governed turbine wheel
Corrosion resistant coatings
360 degree indexation of the inlet port
Fewer moving parts
Longer service intervals
Immunity to dusty environments
Immunity to extremely high or low temperatures
No need for special tools when servicing
No batteries are required
Air starters come in many configurations for a variety of applications and fitment objectives.
Nosecone or overhung pinions
Berrylium Copper Bronze (BCB) non sparking pinions available
Clockwise or Counter clockwise rotation
Pre-engaged or inertia engagement options
Z shaped models available for limited space applications
Mounting flange and pinion options available to suit most engines
