| Property | Value | Unit |
|---|---|---|
| Models covered | ATS73, ATS74 | |
| Engine displacement range | 7-16 | litres |
| Power at 100 psi | 19.1 | kW |
| Torque at 100 psi | 156 | Nm |
| Air consumption at 100 psi | 170 | l/s |
| Speed | 4500 | RPM |
| Noise level | 100 | dBA |
| Hazardous area certification | ATEX | |
| Lubrication required | No | |
| Weight | 16 | kg |

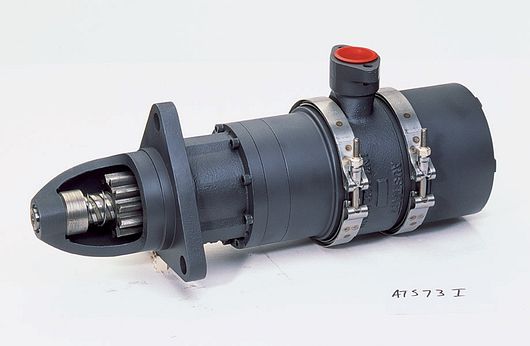

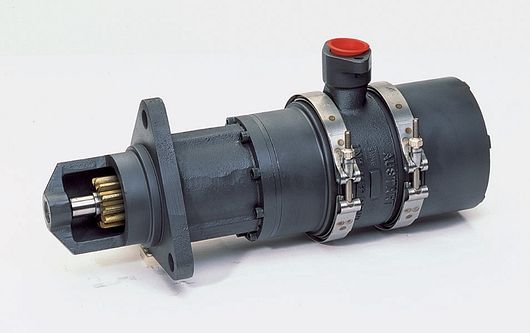

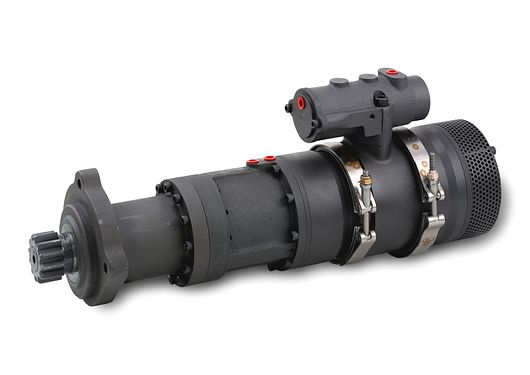

ATS73 & 74 - For Diesel applications 7-16 Litres (Available with ATEX Certification)
The ATS73 & 74 series is robust and regularly used in the Australian Coal Mining Industry. Oil & Gas and Marine industries also benefit from the ATS73 series.
Key features at 100 psi
Weight
16 kg
Power
26 hp (19.1 kW)
Torque
115 ft (156 Nm)
Comsumption
6 scfs (170 I\s)
Speed
4500 RPM
Noise Level
100 dBa
No lubrication required
Higher cranking torque
Extended cranking periods
Faster and more reliable starting
3 staged self governed turbine wheel
Corrosion resistant coatings
360 degree indexation of the inlet port
Fewer moving parts
Longer service intervals
Immunity to dusty environments
Immunity to extremely high or low temperatures
No need for special tools when servicing
No batteries are required
Optimized planetary gearing
Air starters come in many configurations for a variety of applications and fitment objectives.
Nosecone or overhung pinions
Beryllium Copper Bronze (BCB) non sparking pinions available
Clockwise or Counter clockwise rotation
Pre-engaged or inertia engagement options
Z shaped models available for limited space applications
Mounting flange and pinion options available to suit most engines
