| Property | Value | Unit |
|---|---|---|
| Models covered | ATS93, ATS94 | |
| Engine displacement range | 25-70 | litres |
| Weight | 16.3 | kg |
| Power at 100 psi | 25.7 | kW |
| Torque at 100 psi | 284.7 | Nm |
| Air consumption at 100 psi | 380 | l/s |
| Speed | 3600 | RPM |
| Noise level | 108 | dBA |
| Hazardous area certification | ATEX | |
| Lubrication required | No |

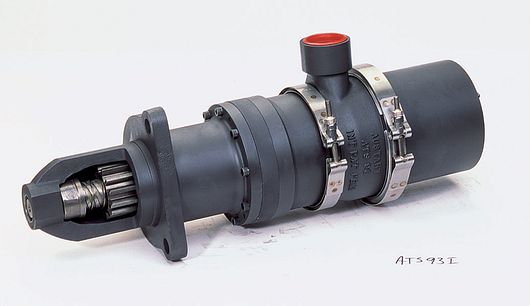

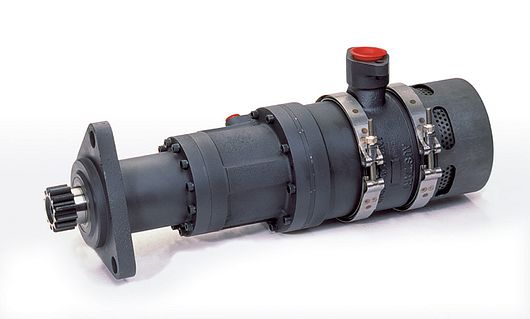

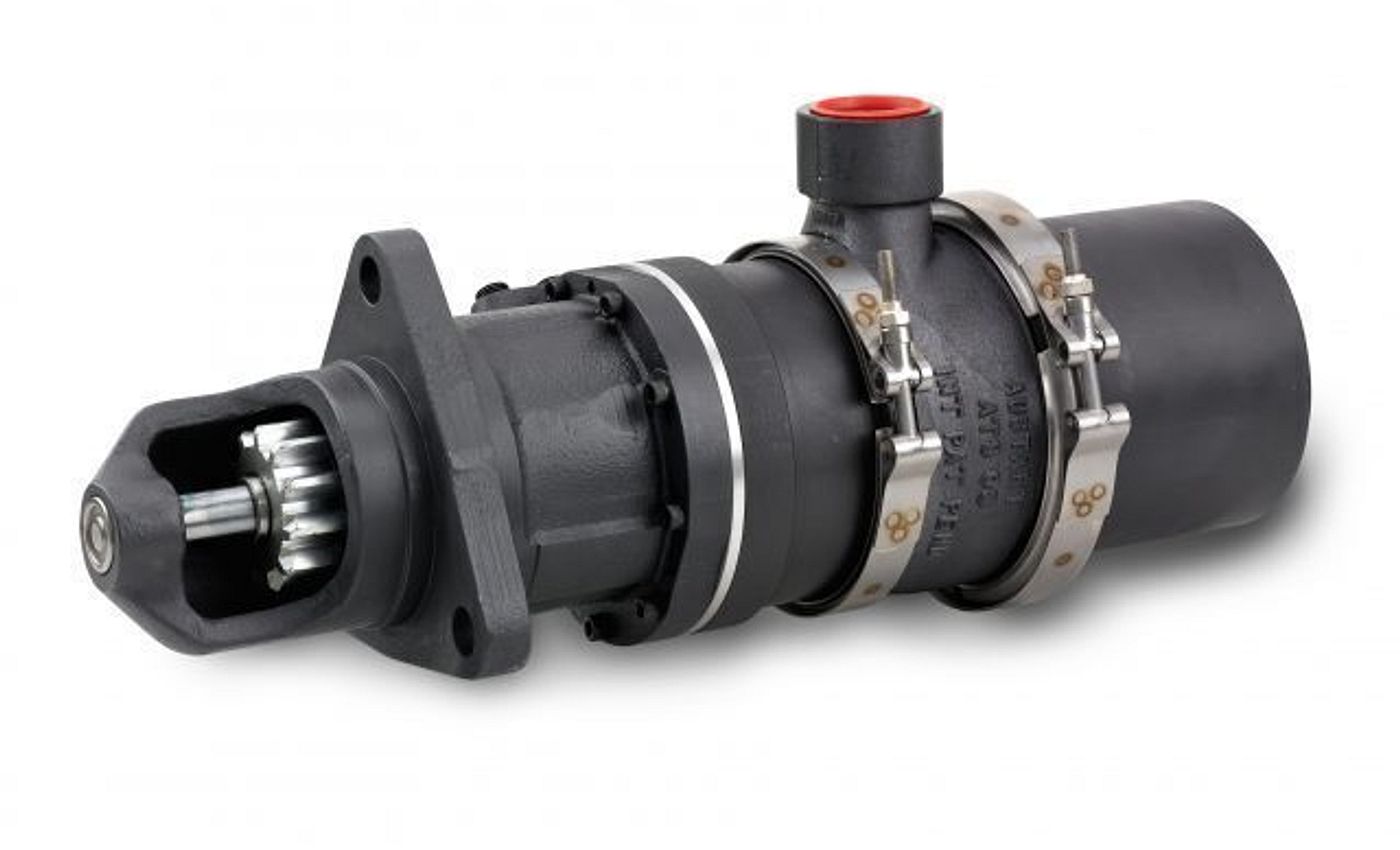

ATS93 & 94 - For Diesel applications 25-70 Litres (Available with ATEX Certification)
ATS93I Service Kits
The ATS93 series has a high power-to-weight ratio allowing you to start larger engines reliably. They are regularly used in the Marine industry and large mine haul trucks.
Key Features at 100 psi starting pressure
Weight
36 lb (16.3 kg)
Power
35 hp (25.7 kW)
Torque
210 ft lb (284.7 Nm)
Comsumption
13.5 scfs (380 I/s)
Speed
3600 RPM
Noise Level
108 dBA
By ingenious design, benifits of Austart turbine starters include:
No lubrication required
Higher cranking torque
Extended cranking periods
Faster, more reliable starting
3 stage self governed turbine wheel
Corrosion resistant coatings
360 degree indexation of the inlet port
Fewer moving parts
Longer service intervals
Immunity to dusty environments
Immunity to extremely high or low temperatures
No need for special tools when servicing
No batteries are required
Optimised planetary gearing
Air starters come in many configurations for a variety of applications and fitment objectives.
Nosecone or overhung pinions
Berrylium Copper Bronze (BCB) non sparking pinions available
Clockwise or Counter clockwise rotation
Pre-engaged or inertia engagement options
Z shaped models available for limited space applications
Mounting flange and pinion options available to suit most engines
